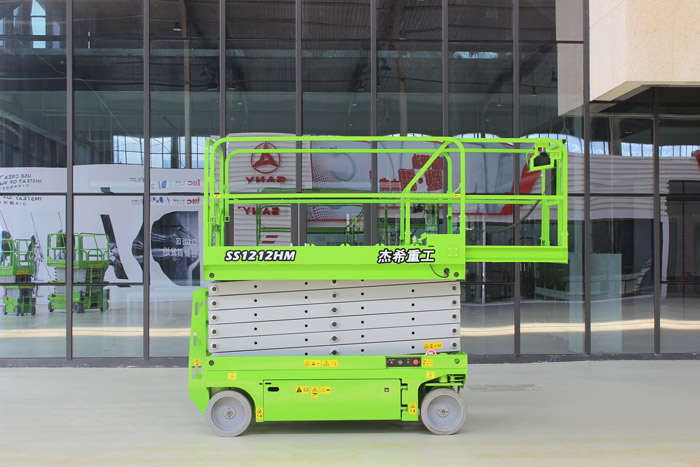

High impact anti-corrosion AWP 12m 39ft 320KG Self Propelled Scissor Lift For Maintenance

Name: High impact anticorrosion AWP 12m 39ft 320KG Self Propelled Scissor Lift For Maintenance
Brand: JESH
Price: 1 USD

China High impact anti-corrosion AWP 12m 39ft 320KG Self Propelled Scissor Lift For Maintenance wholesale

Brand Name : JESH

Model Number : SS1212HM

Certification : CE/ISO

Place of Origin : CHINA

MOQ : 1 Unit

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 4000 Units per month

Delivery Time : 45days

Packaging Details : Regular factory packing

Max.Working Height : 13.8m

Max.Platform Height : 11.8m

Platform Length : 2.27m

Platform width : 1.14m

Width : 1.14m

Length : 2.48m

Wheelbase : 1.87m

Weight : 2898kg

Material : High-duty Steel Structure

Control methods : 2 Controls (top+ground)

Engine : optional (perkins, Kohler,Deutz,Commins,Yanmar)

OEM : OEM Surpport

Power source : Hydraulic motor

Contact Now

Chassis:

Unique design of bidirectional retracting scissor arm.
Slide out tray on left and right,easy for maintenance.
Forklift hole on the front for loading and discharging.
Unique pothole protection design.
Orbital plane,easy for cleaning.
Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right, allowing stable turning.

Self propelled Scissor Lift:

Unique design of bidirectional retracting scissor arm providing better stability and comfort of machine. Slide out tray on left and right side, easy for maintenance. Forklift hole on side for loading and discharging.Unique pothole protection design with higher reliability. Orbital plane easy for cleaning. Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right side allowing stable turning. Reasonable scissor arm design ensuring longer life span. Stable raising and lowering movement, good synchronism.

Technical Parameters:

Dimensional Data
Model	SS1012HM
Max.working height	12m
Max.Platform Lifting Height	10m
Machine Width	1.14m
Machine height(Railing unfolded)	2.47m
Machine height(Railing folded)	1.94m
Platform Height/Width	2.28*1.12m
Platform Extension Length	0.9m
Ground Clearance(stowed)	0.1m
Wheelbase	1.87m
Platform Capacity	320kg
Platform Capacity-Extension	120kg
Maximum Workers Number	3
Turning Radius(inside/outside)	0/2.1m
Dirive Speed(Platform Lowered)	3.5km/h
Drive Speed (Plateform Elevated)	0.8km/h
Lift/Lower Time	55/42 sec
Gradeability	25%
Maximun Working Slope	3°
Tire Size	40.5*12.7m

High impact anti-corrosion AWP 12m 39ft 320KG Self Propelled Scissor Lift For Maintenance

Packaging & Shipping

Jesh Standard packing,with hard plastic bag to cover the whole machine and with steel wire holds the machine foot.

Shipping by sea with around 40-45 days arrrive your destination port.

High impact anti-corrosion AWP 12m 39ft 320KG Self Propelled Scissor Lift For Maintenance

Our Services

We provide long term warranty: 5 years for the main structural,2 years for the whole machine.

If we have a dealer in your local so we can make the after-sell service.If don't have,please contact us for the technical supports,we can full support you online.

self propelled electric scissor lift

one man scissor lift

High impact anti-corrosion AWP 12m 39ft 320KG Self Propelled Scissor Lift For Maintenance Images
