Mobile Hydraulic 14m Aerial Self Propelled Scissor Lift

Product Categories

Hunan Jesh Heavy Industry Co.,Ltd

Contact Now

Name: Mobile Hydraulic 14m Aerial Self Propelled Scissor Lift
Brand: JESH
Price: 1 USD

Brand Name : JESH

Model Number : SS1312HL

Certification : CE

Place of Origin : China

MOQ : 1Unit

Price : Negotiation

Payment Terms : T/T, L/C, D/P, D/A

Supply Ability : 4000 Units per month

Delivery Time : 45 days

Packaging Details : Regular factory packing

Color : Green

Working Height : 13.8m

Platform Height : 11.8m

width : 1.14m

Length : 2.48m

Capacity : 320KG

engine : Deutz

After-sales Service Provided : Service Machinery Overseas

Product name : Aerial Work Platform

Contact Now

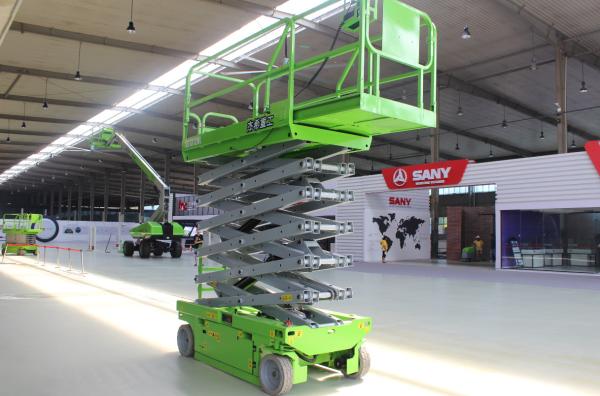

Mobile hydraulic Self propelled 14m scissor lift aerial working platform

Chassis

Unique design of bidirectional retracting scissor arm.
Slide out tray on left and right,easy for maintenance.
Forklift hole on side for loading and discharging.
Unique pothole protection design.
Orbital plane,easy for cleaning.
Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right, allowing stable turning.

Performance

Main Specs

Technical Parameters

Model	SS1312HL
Dimentions	Metric
Working Height	14.8m
Platform Height	12.8m
Platform Length	2.36m
Platform Length-Extended	3.26m
Platform Extension	0.9m
Platform Width	1.10m
Height -Unfolded	2.61m
Height-folded	2.08m
Wheelbase	1.93m
Min. Ground Clearance-stowed	10cm
Min. Ground Clearance-Raised	2cm
Productivity
Platform capacity	320kg
Extension platform capacity	120kg
Drive Speed	3.5km/h
Gradeability	25%
Raise/Lower Speed	59/45sec
Turning Radius(Inside/outside)	0/2.17m
Tire	40.5x12.7cm
Power	Electric Hydraulic
Engine	Optional( Pekins,Kohler,Deutz,Commins,Yanmar)
Hydraulic Oil Tank Capacity	25L
Machine Total Weight	3061kg
Bettery	24V/225Ah

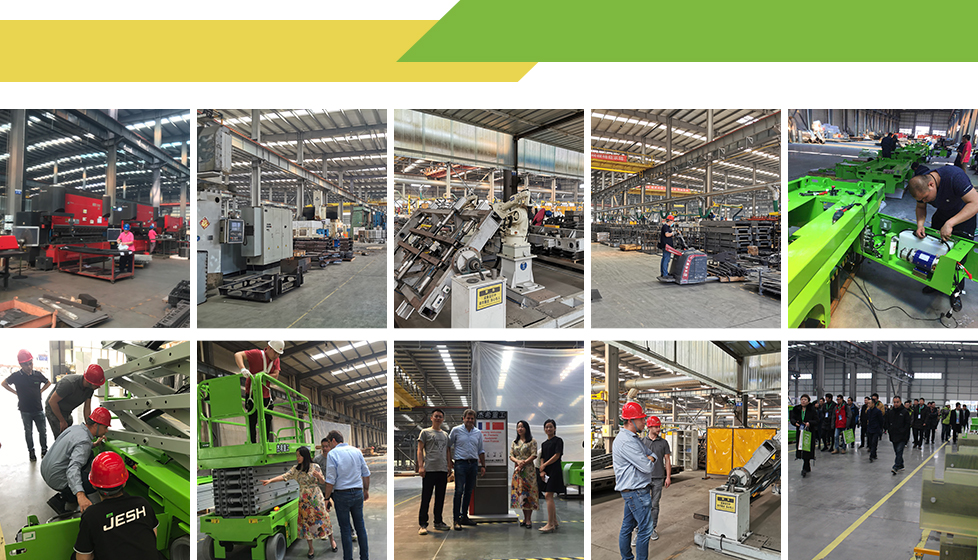

Factory show and customer visit

Mobile Hydraulic 14m Aerial Self Propelled Scissor Lift
